PRODUCTS

Hardfacing Chrome Carbide Plates




Mecdiff Sdn Bhd is the manufacturing wing for Chrome Carbide Hardfacing Plate in Malaysia. Equiped with State of Art  manufacturing capability, Mecdiff is capable of producing 350 square meters of plates per month.

Various thicknesses and alloy combinations can be manufactured according to customer needs.

Borodur Zig Zag

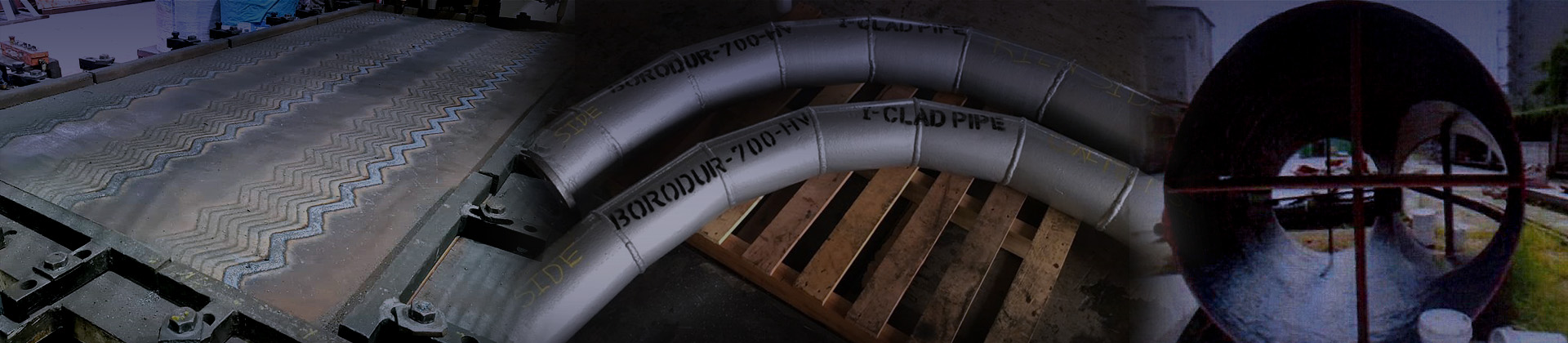

Plate Picture

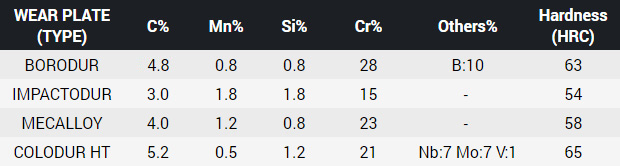

Typical types of grades are as below:



Borodur 700HV plates have a unique combination of hardness, toughness and durability that makes them suitable for handling severe abrasion, impact and corrosion.


Testing Equipments

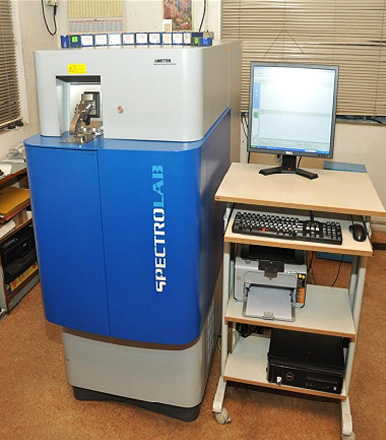

23 Elements with Ni, Co,Fe _ B Base

Microscope with 2000x MAG with Clemex Image Analyser

Air Erosion Jet Testing

Erosion Wear Test
Mass flow
:
max. 1kg/min

Particle size
:
10 to 100 um

Particles
:
quarz, sand, korundum, minerals cement, dolomite, ...

Blast angle
:
0° (slide) to 90° (impact)

Speed gas flow
:
max. 250 m/s

Gas
:
Air






ASTM G65 - 2 Body Abrasion Testing

Rubber-Wheel-Wear Test ASTM G65-00

Solid matter
:
250 - 350g/min

Material
:
rounded silica sand 200 - 425pm

Wheel
:
rubberized, shore hardness A58-62, (Steel, Aluminium or others)
